販売終了製品
discontinued
RT-600 | 屋外用 600Wタイプオートアンテナチューナー→こちら |
---|---|
YT-100 | Yaesu無線機用オートアンテナチューナー→こちら |
AT-897Plus | FT-897用オートアンテナチューナー→こちら |
AT-1000Pro | 屋内用 1000Wタイプオートアンテナチューナー→こちら |
AT-600Pro | 屋内用 1000Wタイプオートアンテナチューナー→こちら |
YT-1200 | Yaesu無線機用オートアンテナチューナー→こちら |
Z-817H | FT-817+50Wリニア用オートアンテナチューナー→こちら |
KT-100 | ケンウッドAT300互換オートアンテナチューナー→こちら |
LDG-M-1000 (AT-1000ProII用外付けアナログメーター) |
AT-1000ProII用外付けアナログメーター 対応機種 AT-1000ProII |
LDG-M-600 (AT-600ProII用外付けアナログメーター) |
対応機種 AT-600ProII |

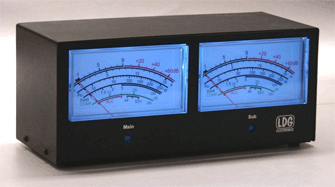

ICOM IC-7800用 アナログメーター DM-7800 |
Icom’s magnificent IC-7800 transceiver is a quantum leap is amateur radio technology. Sure, it cost more than your first car but it offers features and performance unheard of in lesser rigs. Icom did a pretty good job on the make-believe LCD meters, but let’s face it… sometimes nothing but a real, live meter will do. LDG’s DM-7800 dual meter system provides two 4.5” meters, one for the Main receiver and one for the Sub. The lush meter faces are LED back-illuminated in cool, high-visibility blue, drawing only 20 -- 60 ma (depending on brightness setting) with a brightness control on the back. There are separate calibration adjustments for Main and Sub accessible from the back of the DM-7800; you don’t have to take the meter apart to cal. A provided cable connects to your rig, and the radio menu lets you select functions for each meter. What’s more, the DM-7800 and the virtual meters on your radio can work together; for example, you can display SWR on the radio’s meter and power output on the DM-7800. On receive, the S-meter reading is shown. The DM-7800 is 9.7 x 4 x 4 inches, and requires power only for the lights; the meters themselves are passive. The case is textured black, a great match for the IC-7800. Your beautiful IC-7800 deserves the best; add LDG’s new DM-7800 dual meter system, and you're in the picture like never before. The DM-7800 is made exclusively for the IC-7800; order yours today. ・Large 4.5 inch Dual Meters ・Seven individual scales: S-Meter, Id, Po, SWR, Comp, Vd, ALC ・Size: 4.0 x 4.0 x 9.7 inches ・Cable length 3 feet ・Sensitive 500 uA meter movement ・Externally powered cool blue backlighting ・Backlighting is 12 volts, 250 mA max ・Weight: 1 lb. 対応機種 ICOM IC-7800 |

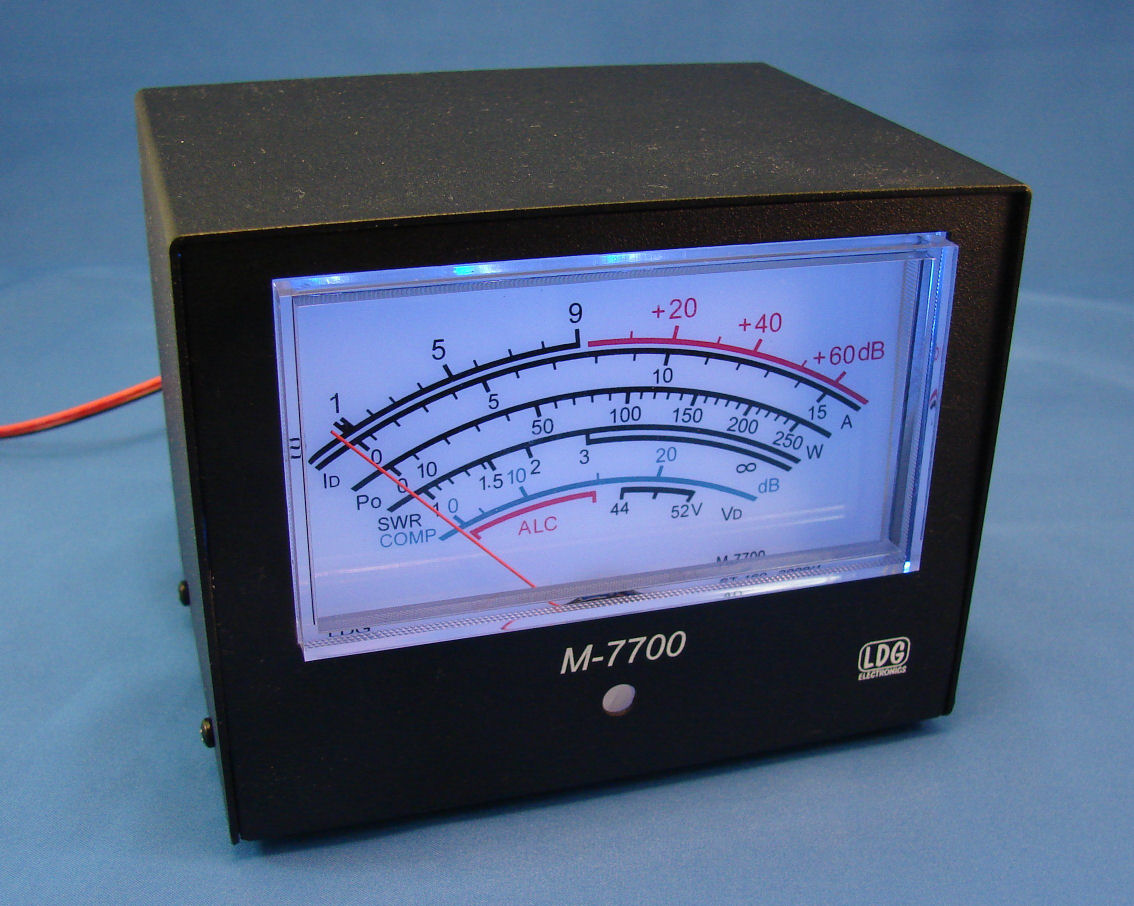

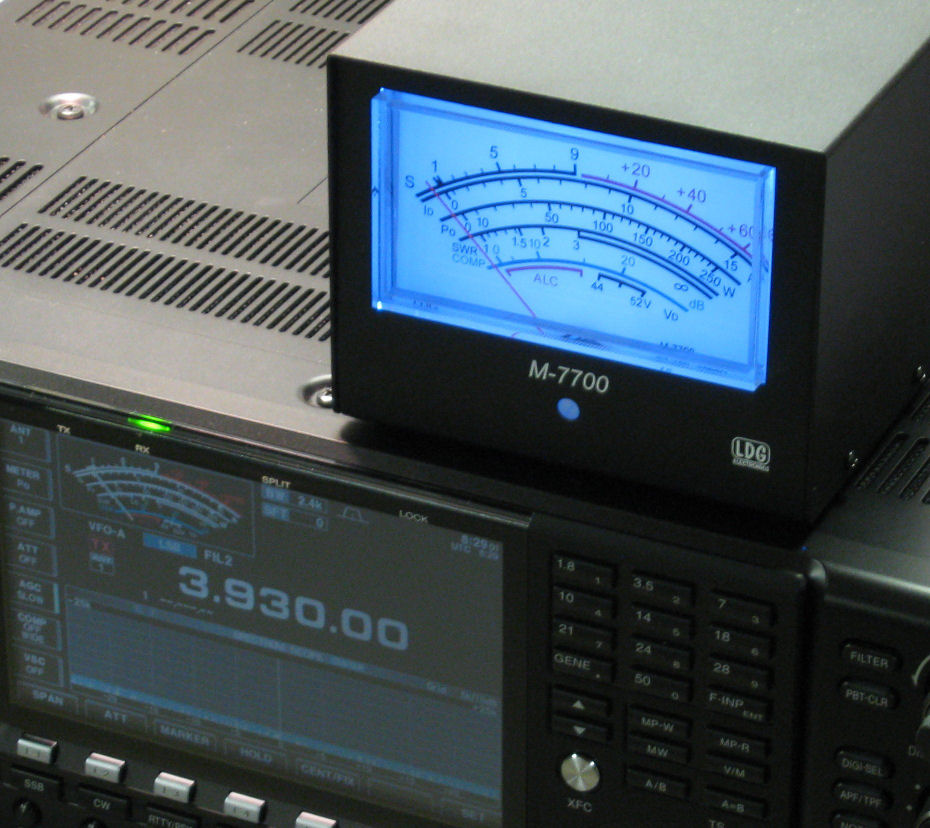

ICOM IC-7700用 アナログメーター M-7700 |
ICOM IC-7700用外付けアナログメーター The LDG M-7700 provides a lavish 4 1/2” meter for IC-7700. It will display S-meter on receive, or power out, SWR, ALC level or supply voltages, all selectable from the rig’s setup menu. What’s more, the M-7700 and the virtual meter on your radio can work together; for example, you can display SWR on the radio’s meter and power output on the M-7700. The meter face is backlit in cool LED blue, powered by any 12 volt, 250ma source; there’s a brightness control on the case back. The meter itself is passive; it doesn’t require the 12 volt supply. You don’t have to power the backlight, but you’ll be missing out on a great feature if you don‘t. Calibration adjustments are accessible from the back of the M-7700; you don’t have to take the meter apart if you ever need to cal. The M-7700 comes fully assembled and calibrated; both the radio and power cables are included, of course, so you’re ready to go right out of the box. And, it carries LDG‘s two year, fully transferable warranty. ・Large 4.5 inch Meter ・Seven individual scales: S-Meter, Id, Po, SWR, Comp, Vd, ALC ・Size: 4.0 x 4.0 x 5.7 inches ・Cable length 3 feet ・Sensitive 500 uA meter movement ・Externally powered cool blue backlighting ・Backlighting is 12 volts, 250 mA max ・Weight: 1 lb. 対応機種 ICOM IC-7700 |

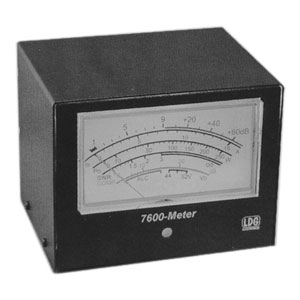

ICOM IC-7600用 アナログメーター M-7600 |
ICOM IC-7600用外付けアナログメーター The LDG M-7600 provides a lavish 4 1/2” meter for the IC-7600. It will display S-meter on receive, or power out, SWR, ALC level or supply voltages, all selectable from the rig’s setup menu. What’s more, the M-7600 and the virtual meter on your radio can work together; for example, you can display SWR on the radio’s meter and power output on the M-7600. The meter face is backlit in cool LED blue, powered by any 12 volt, 250ma source; there’s a brightness control on the case back. The meter itself is passive; it doesn’t require the 12 volt supply. You don’t have to power the backlight, but you’ll be missing out on a great feature if you don‘t. Calibration adjustments are accessible from the back of the M-7600; you don’t have to take the meter apart if you ever need to cal. The M-7600 comes fully assembled and calibrated; both the radio and power cables are included, of course, so you’re ready to go right out of the box. And, it carries LDG‘s two year, fully transferable warranty. ・Large 4.5 inch Meter ・Seven individual scales: S-Meter, Id, Po, SWR, Comp, Vd, ALC ・Size: 4.0 x 4.0 x 5.7 inches ・Cable length 3 feet ・Sensitive 500 uA meter movement ・Externally powered cool blue backlighting ・Backlighting is 12 volts, 250 mA max ・Weight: 1 lb. 対応機種 ICOM IC-7600 |
Yaesu FT-857(D), FT-897(D) 用 アナログメーター FT-Meter |
Yaesu' FT-857(D) , FT-897(D) 用外付けアナログメーター Yaesu's popular FT-857(D) and FT-897(D) transceivers are wonders of compact efficiency. These do-anything, go-anywhere transceivers were science fiction just a few years ago, but ham's today are using them in shacks, mobiles and on dxpeditions from the back yard to the top of the world. About the only problem with these radios is that us hams who are old enough to remember when stuff like this really was science fiction are also old enough to wish that the display was just little bit bigger. As we grow in wisdom and experience, we also grow to depend on bifocals; those tiny little screens are just plain hard to read! Add to that a strong desire to see a real live meter needle bouncing on voice peaks, and you find yourself wishing Yaesu had thought all this through when they designed the radio. Well, in fact they did. A little known feature of these radios, noticed only by compulsive manual readers, is a meter jack on the bottom of the front panel. You have to figure that Yaesu knew they needed a bigger display all along, but just left it as an exercise for the user. Well, help is here! The LDG FT-Meter is a low-cost, plug-and-play solution to all your FT metering needs. The FT-Meter presents a lush, highly readable 2.5" meter face with calibrated scales for signal strength and discriminator reading on receive, and power output, SWR, modulation, ALC action and supply voltage on transmit. Each function is selectable from the radio's menu. Easily visible from anywhere on your desk or dash, the FT-Meter is illuminated by any external 12 vdc source. The FT-Meter comes fully assembled and ready to go; just plug it into the radio and you're in the picture like never before. Order yours today. ・Receive: S-Meter, Discriminator or Voltage ・Transmit: RF Power, SWR, Modulation, ALC or Voltage ・Cable length 3 feet ・Sensitive 500 uA meter movement ・Externally powered cool blue backlighting ・On/Off switch for backlight. ・Backlighting requires 11 to 15 volts, 100 mA ・Size: 3.6W x 3.0 D x 2.6H inches ・Weight: 0.5 lb. ・For use with FT-857(D) and FT-897(D) only. 対応機種 Yaesu' FT-857(D) , FT-897(D) |

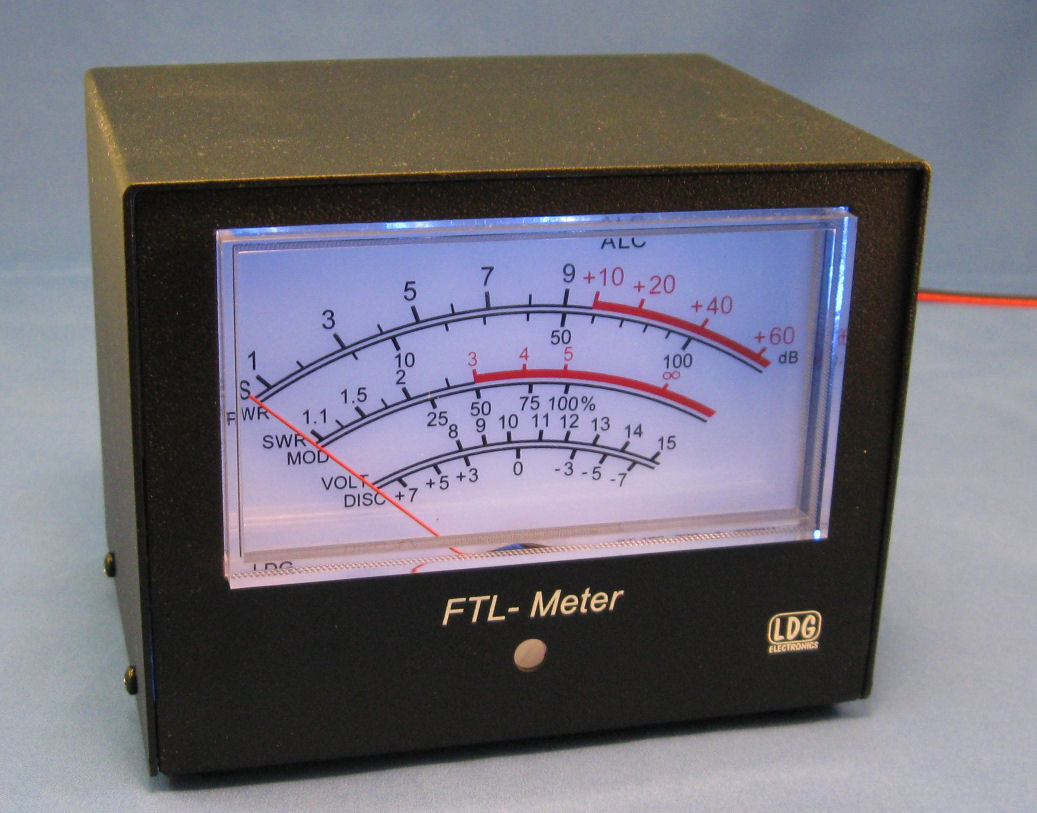

Yaesu' FT-857(D) , FT-897(D)用 アナログメーター FTL-Meter |
Yaesu' FT-857(D) , FT-897(D)用外付けアナログメーター Yaesu's popular FT-857(D) and FT-897(D) transceivers are wonders of compact efficiency. These do-anything, go-anywhere transceivers were science fiction just a few years ago, but ham's today are using them in shacks, mobiles and on DXpeditions from the back yard to the top of the world. About the only problem with these radios is that we hams who are old enough to remember when stuff like this really was science fiction are also old enough to wish that the display were just little bit bigger. Add to that a strong desire to see a real live meter needle bouncing on voice peaks, and you find yourself wishing that Yaesu had thought all this through when they designed the radio. Well, it turns out they did. A little known feature of these radios, noticed only by compulsive manual readers, is a meter jack on the bottom of the front panel. Well, help is here! The LDG FTL-Meter is a large, easy-to-read, plug-and-play solution to all of your metering needs. LDG’s new version of its popular FTL-Meter presents a lush, highly readable 4.5 inch meter face with calibrated scales for signal strength and discriminator reading on receive, and power output, SWR, modulation, ALC action and supply voltage on transmit. Each function is selectable from the radio's menu. ・Receive: S-Meter, Discriminator or Voltage ・Transmit: RF Power, SWR, Modulation, ALC or Voltage ・Cable length 3 feet ・Sensitive 500 uA meter movement ・Externally powered cool blue backlighting ・On/Off switch for backlight. ・Backlighting requires 11 to 15 volts, 250 mA ・Size: 4.5W x 4.0D x 4.5H inches ・Weight:1 lb. ・For use with FT-857(D) and FT-897(D) only. 対応機種 Yaesu' FT-857(D) , FT-897(D) |
